      Precision AC Adapter

    Dual output  ...  +15VDC, -15VDC
       Universal Input  ...  90 to 264VAC  50-60Hz

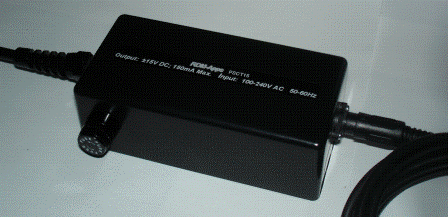

Desktop / Wall Mount Universal AC Adapter.    110V AC to 240V AC Input , 50Hz/60Hz , Dual output DC
 +15VDC, -15VDC ( ±15VDC )  output power adapter.



Input Voltage:  90VAC to 264VAC   OR   110VDC to 370VDC
  Input Frequency: 47Hz to 440Hz

Output Voltage:  Dual ... +15VDC, -15VDC   OR   Single ... 30VDC

Output Current: Models up to 500mADC
  Temperature: -10deg.C to 70deg.C  ( 0.01%/deg.C )
  Ripple / Noise (p-p):  1%  or  50mV  ... whichever is greater

OverVoltage and OverCurrent Protection

UL recognized, TUV approved, CSA certified  Internal Power Module

Output set accuracy: better than 2%

Line Regulation:  0.5%

Load Regulation:  1%

Typical Enclosure Dimensions: 5.3" x 2.9" x 1.9"  ( 13.4cm x 7.4cm x 4.8cm )

Enclosure Material: Black ABS

Output Connector:  3-pin DIN female

Fused Input



 Contact Information

Call or email us for Availability & Pricing



HOME





AC - DC Adapter Models:
PSCT15-300 AC to DC Adapter ... 300mA output; UL, TUV, CSA ... Internal power module ( YAW1015E ) Specifications
PSCT15-150 AC to DC Adapter ... 150mA output; UL, TUV, CSA ... Internal power module ( YAW515E )  Specifications
PSCT15-500 AC to DC Adapter ... 500mA output; UL, TUV, CSA ... Internal power module ( KMD15-1515 )  Specifications
                                                               500mA output; UL, TUV, CSA ... Internal power module ( KWD15-1515 )  Specifications
                                                               500mA output; UL ... Internal power module ( RAC15-15DA )  Specifications
                                                               500mA output; UL ... Internal power module ( RAC15-15DB )  Specifications
